Mulga Mesh IoT Node
Mulga Mesh IoT Node
Low-power network and sensor node for cameras, weather stations and RS485 devices
- Compact low-power Mulga Mesh network node
- Local 2.4GHz Wi-Fi for compatible devices
- Supports RS485 sensors and remote monitoring equipment
- Connect cameras, weather stations and sensors remotely
- Monitor multiple field devices from one node
- Use solar power for low-power off-grid installations
Notify Me When This Is Available
Couldn't load pickup availability

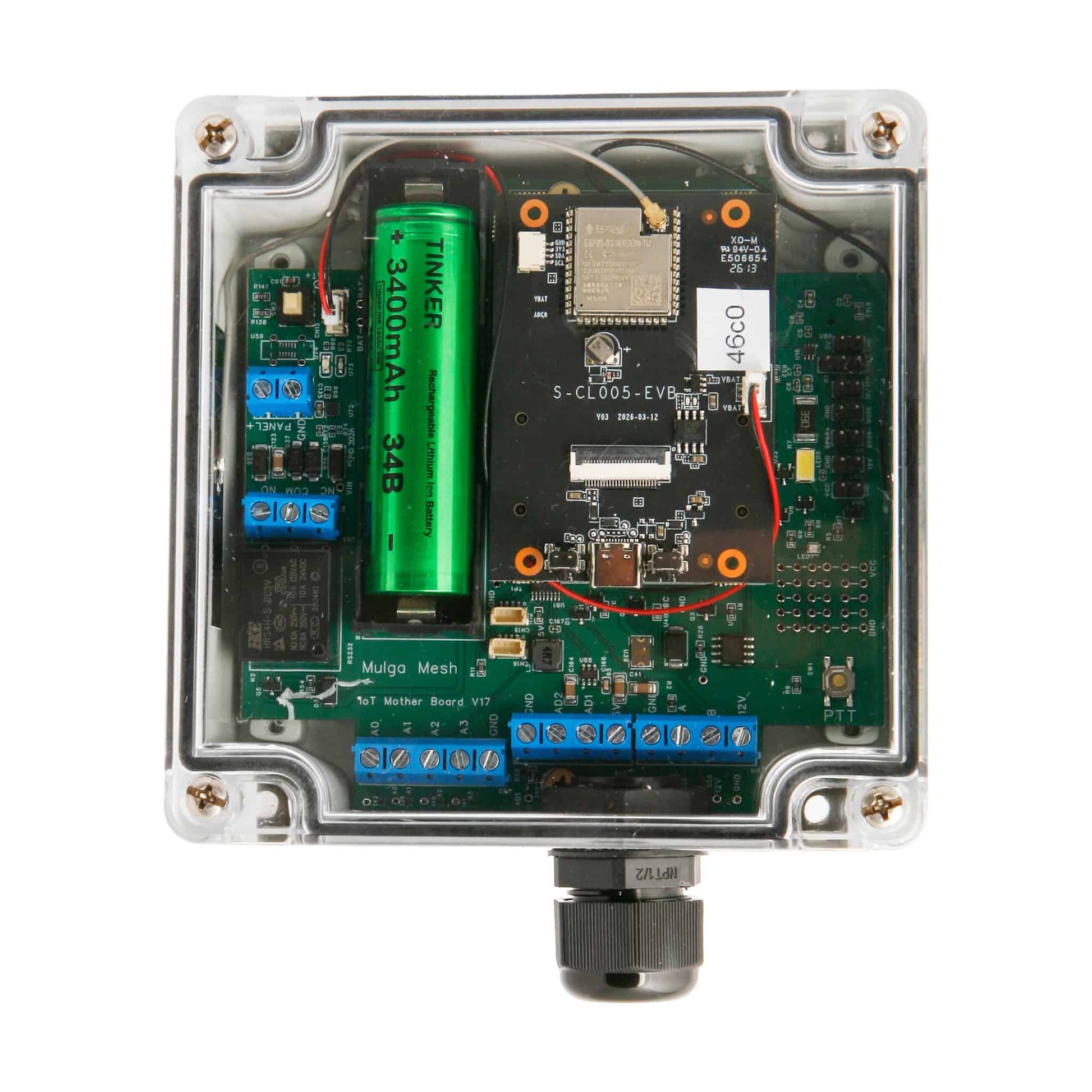

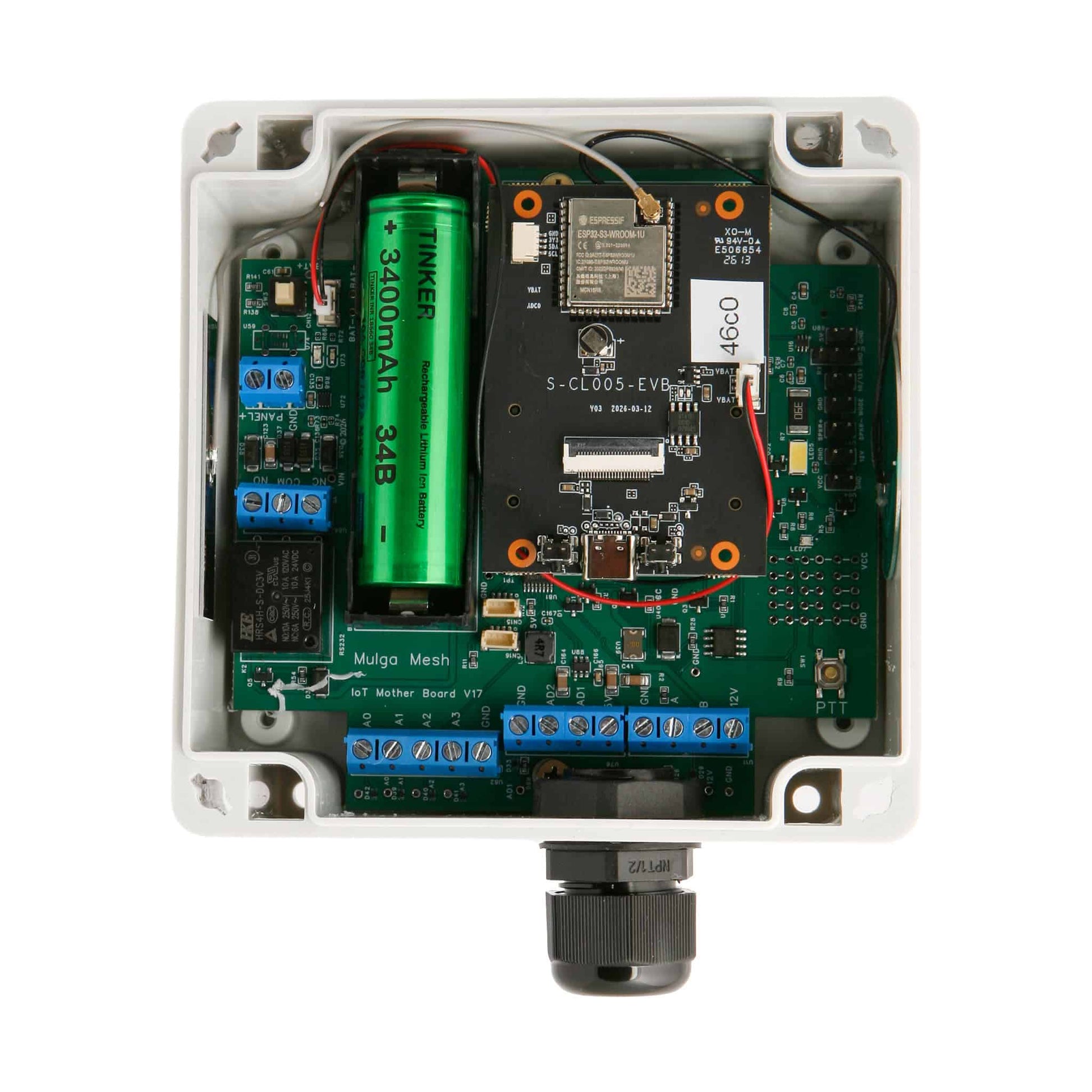

The Mulga Mesh IoT Node is a compact, low-power field node designed for remote monitoring applications.
It connects back to your Mulga Mesh network using long-range Wi-Fi HaLow and provides local 2.4GHz Wi-Fi so compatible cameras, weather stations and other devices can connect nearby. It can also be configured for RS485 sensors, allowing multiple compatible sensors to connect to a single IoT Node.
Use it for remote camera points, weather stations, soil and water monitoring, gate sensors, environmental sensors and other low-power applications where a full Mesh Node may not be required.
Share
Features
-
Low-Power Remote Monitoring
Designed for off-grid installations where efficient power use matters.
-
Connect Compatible Cameras
Provides local 2.4GHz Wi-Fi for compatible cameras in remote locations.
-
Weather Station Ready
Use as a remote connection point for compatible weather stations across your property.
-
Multi-Sensor Capability
Connect compatible RS485 sensors, including soil, water, environmental and agricultural sensors.
-
In The Box
- 1 × Mulga Mesh IoT Node
- Quick Start Guide
Optional accessories, sensors, cameras, solar panels and batteries may be supplied separately depending on configuration.
-
Specs
- Network Connection: Wi-Fi HaLow
- Local Device Connection: 2.4GHz Wi-Fi
- Sensor Support: RS485 sensors
- Additional Sensor Support: SDI12 and selected analog/I²C sensors, depending on configuration
- Power: Low-power battery and solar-ready operation
- Battery: 18650 lithium cell support
- GPS: Integrated GPS
- Data Output: MQTT / dashboard integration
- Suitable For: Cameras, weather stations, RS485 sensors, remote monitoring and field data collection
- Typical Use: Remote monitoring points where a full Mesh Node is not required
Let’s Answer Your Questions
Is the IoT Node the same as a Mesh Node?
No. The IoT Node works like a compact, lower-power network node, but it is designed more specifically for remote monitoring, sensors and selected connected devices.
What can I connect to the IoT Node?
The IoT Node supports a range of compatible devices. It provides local 2.4GHz Wi-Fi for cameras, making it useful as a remote camera connection point. It also works with weather stations and RS485 sensors - multiple RS485 sensors can be connected to a single IoT Node depending on your setup.
Does the IoT Node need mains power?
No. It is designed for low-power remote use and can be used with suitable battery and solar power options.
When should I use an IoT Node instead of a Mesh Node?
Use a Mesh Node when you need broader network extension and device coverage. Use an IoT Node when you mainly need a lower-power connection point for cameras, sensors, weather stations or field monitoring equipment.
